A single-storey duplex under one hip roof, drawn as two mirrored units on a 106 by 54 foot footprint. Each side is a self-contained two bedroom, two bathroom home with its own attached garage, its own porch and its own laundry. The duplex house plans arrive as an instant PDF download.
Architectural Style
Duplex house plansWhy the mirroring mattersBoth units are identical in reverse, which is what keeps a duplex economical to build. Plumbing stacks meet at the party wall instead of running to opposite ends of the slab, the framing repeats, and your contractor builds the same unit twice rather than pricing two different jobs.
Living Space
How each unit worksKitchen, dining and living run together as one open space. The primary bedroom has an ensuite bathroom, and the second bathroom serves the other bedroom and any guests. Laundry sits inside each unit rather than in a shared room, which removes the most common source of friction between tenants.
Based on national averages: $184,200 - $245,600
($150-$200 per sq ft × 1,228 sq ft. Actual costs vary by location and finishes.)Get Personalized Estimate →Floor Plans

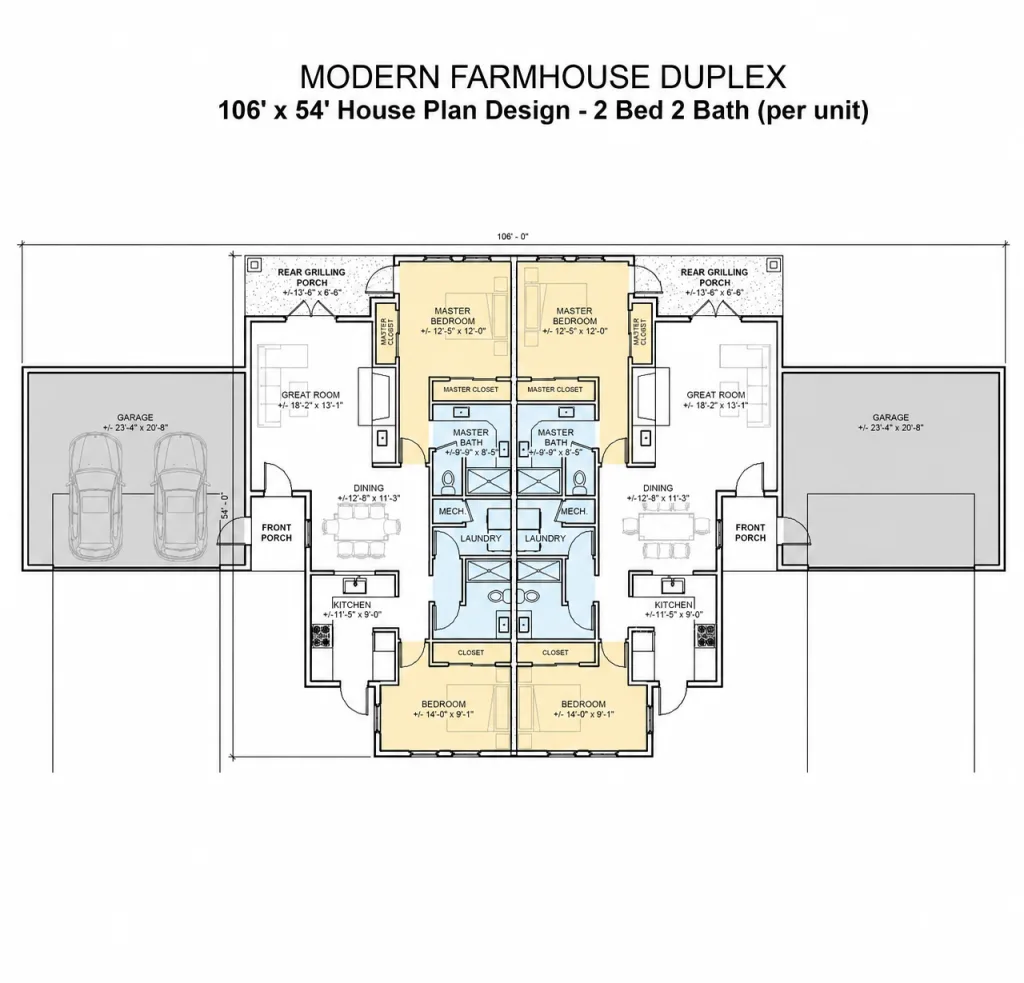

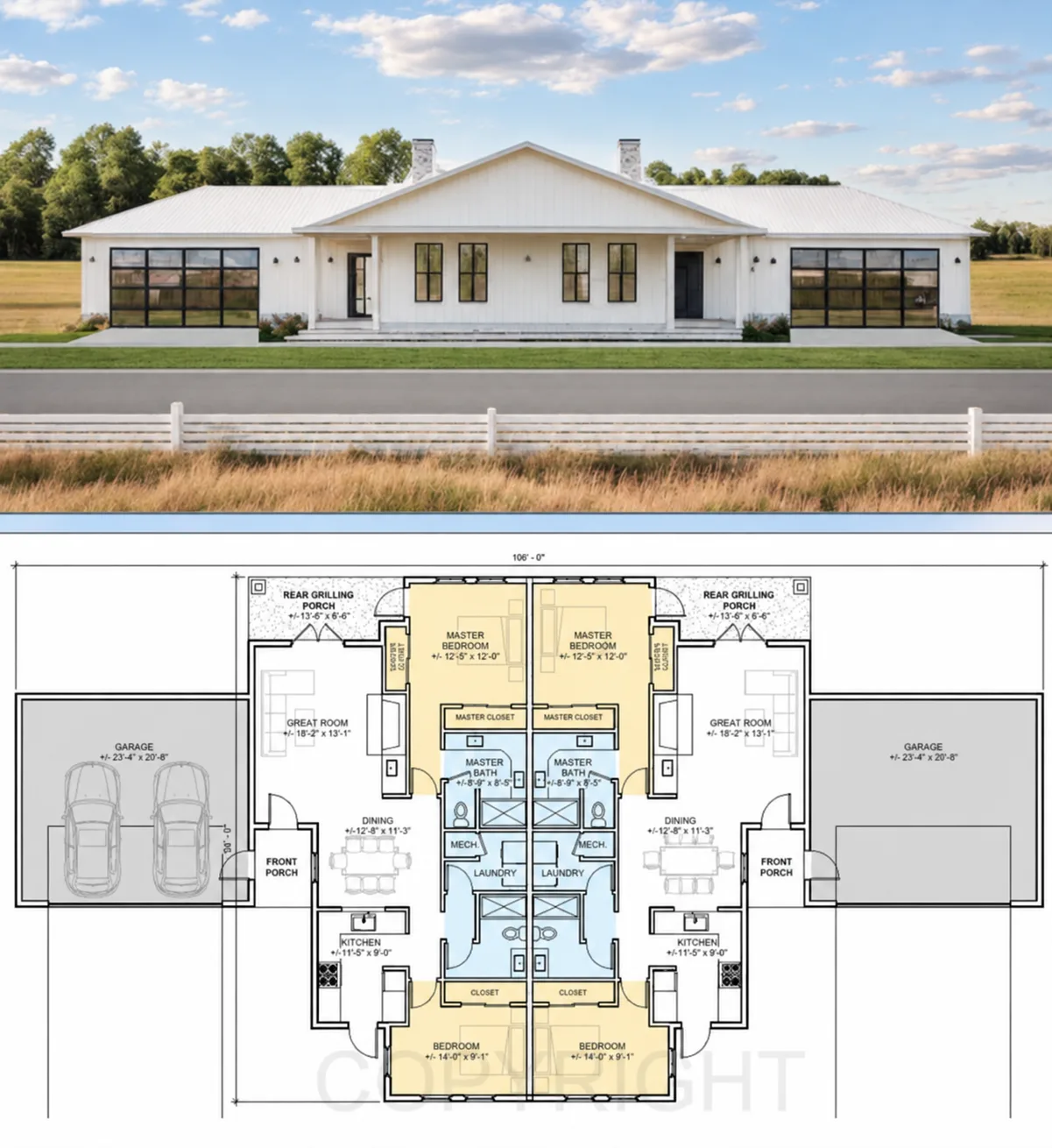

Use the zoom controls to inspect the drawing. Fully dimensioned PDFs are included in your plan set download.
What's Included in Your Plan Set
Every plan purchase includes everything you need to build your dream home
Construction Drawings
Complete set of detailed architectural plans including floor plans, elevations, sections, and details.
- Foundation plan
- Floor plans for all levels
- Exterior elevations (all sides)
- Building sections
- Construction details
Structural Plans
Engineering specifications for framing, load-bearing walls, and structural support.
- Roof framing plan
- Floor framing plan
- Beam specifications
- Column schedules
- Load calculations
Electrical Layout
Complete electrical plan showing outlets, switches, fixtures, and panel locations.
- Outlet locations
- Switch layouts
- Lighting fixtures
- Panel box location
- Dedicated circuits
Foundation Options
Multiple foundation types included to suit your building site requirements.
- Slab foundation
- Crawl space option
- Basement option
- Pier foundation
- Site-specific adaptations
Plan Features
Frequently Asked Questions
Everything you need to know about our house plans
What's included in the house plan package?
Every set includes the cover sheet, foundation plan, dimensioned floor plans, exterior elevations, building sections, roof plan, and electrical layouts as PDF. The CAD Files upgrade adds fully editable drawings.
Can I modify the house plans?
Yes. Modification quotes are free and most changes such as mirroring, resizing rooms, or adding a garage bay are quoted within 2 business days.
How long does delivery take?
Instantly. Your download is available the moment checkout completes, and the link is emailed to you as well.
Are these plans suitable for my local building codes?
Plans are drawn to the International Residential Code. Some jurisdictions require local engineering review or stamps; your building department can confirm what applies.
What is your return policy?
Plans are digital files delivered instantly, so every order is final and non-refundable. You confirm this at checkout when you ask for immediate access. If a file is faulty, incomplete, or does not match what its listing described, contact us and we will repair or replace it.
Do you provide construction cost estimates?
A cost-to-build report can be ordered for any plan and reflects your local material and labor costs.
Can I build the same plan multiple times?
A purchase licenses one build. Contact us for multi-build pricing.
Do you offer mirror-reverse plans?
Yes, mirrored plan sets are available at no additional cost. Just mention it when ordering or in the modification request.
Not ready to buy yet?
Three things you can do right now, all free.
Inside the Hip Roof Duplex Investment Plan plan set
This is not a sketch or a concept render. It is a complete, buildable document set your contractor can price and permit from on day one.
- Full construction drawings: foundation, framing, elevations and sections
- Reviewed by a licensed architect before it ever reaches your builder
- Delivered as a print-ready PDF the moment your order completes
